Need Accurate, High Quality Shop Drawings Fast?
Shop Draft Can Help!
Call Us Today!
Whether you need a supplementary option to help through a busy period,
Or someone to take care of all your drawings - We can Help.
Enquire Now
- Are you looking for a
Shop Drawing Specialist?
Email or call to discuss your needs, or obtain a quotation.
- About Us
We are a Gold Coast Based Drafting Business specialising in Shop Drawings. We cater to Fabricators & Installers across South East Queensland. Our aim is to make your life easier by delivering High Quality, Professional & Accurate Shop drawings in a timely fashion so you can focus on your core business - fabricating & installing high quality products.
0
0
0
0
- Shop Drawing Specialties
- How Easy Is It?
Send Us Your Site Measure Sketches
& The Basic Design Required
Send through your measurements & the design, & we'll get a cost estimate drawn up for you. If you don't have a design and need your design engineered & a Form 15 Provided, no problem, we can organise this for you as well!
Quotation Approval
Engage us to Create your Shop Drawings
Once you are happy with the Estimate Provided, sign off the approval, pay the deposit, and we'll get to work.
If you have engaged us for Form 15 Design - We will provide updates at each stage of the design process to refine the concept design into an Engineered Solution.
Drafting & Completion
Shop Drawing Submission, Review & Finalisation
We will prepare the draft copy of the drawings for you to check & review. If you require any changes, let us know and we will make the adjustments, finalise the drawings & submit them to you complete & ready for sending to your client or builder.
Our drawings come on a professional title block branded with our logo & your logo for a professional looking set of drawings that you can submit for approval with confidence.
- Frequently asked questions
Yes. We have working relationships with RPEQ Engineers who we work closely with to deliver cost effective & aesthetically pleasing designs for our customers. You provide us with the concept design & we will work with one of our engineers to deliver a cost effective engineered solution.
Included in our Pricing is one internal review & associated re-drafting, as well as 2 hours of additional revisions after submission to your client. If additional changes in excess of this are required, then this will be charged at the hourly rate stated in your estimate.
No, we do not undertake site visits. This allows us to keep our costs as low as possible & provide you with the best value we can. If we also undertook site visits, this would significantly cut down the time available for carrying our drafting work for you, and limit the number of fabricators & installers that we can provide our services to.
We need the following from you
- Concept Design Sketches
- Any drawings you have of the design - e.g. Architectural Drawings or Intent
- Site Measurements - These need to be accurate to prevent rework & additional costs.
- Photos from site showing the installation location - if possible
- Any additional relevant information that may affect the design, drawings, sizes, or present a conflict with the installation location.

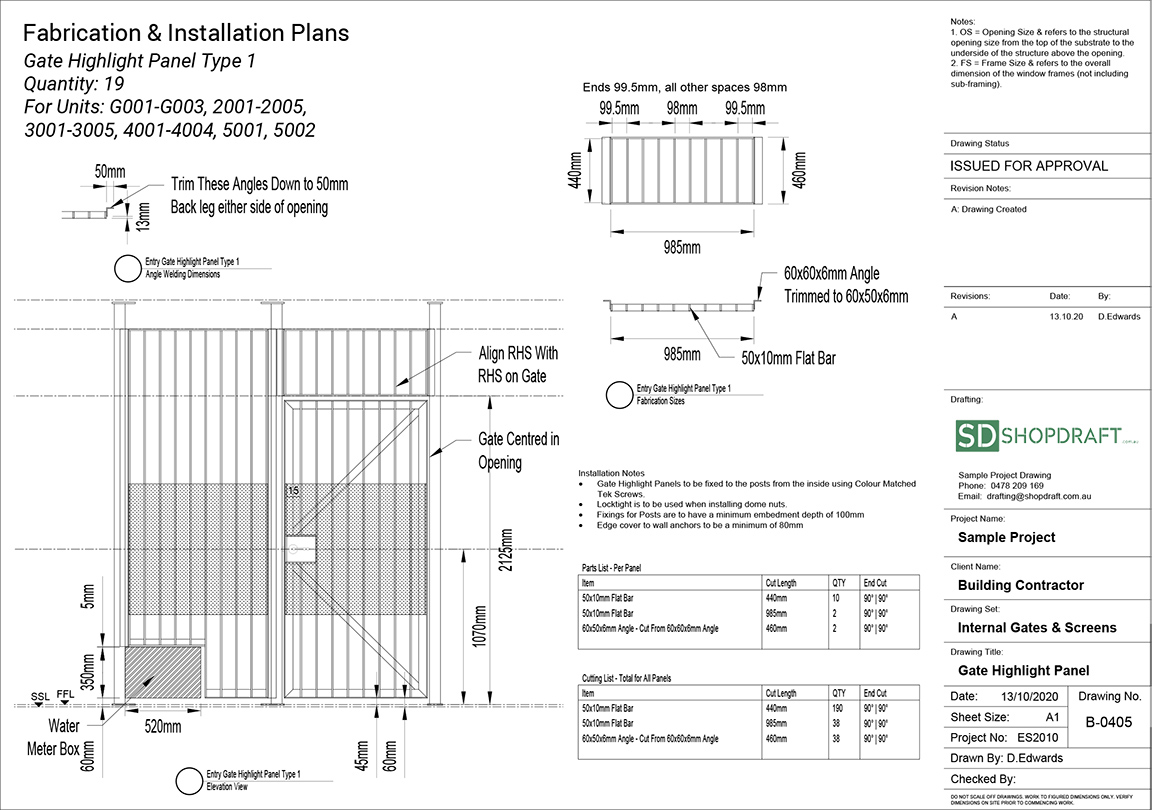

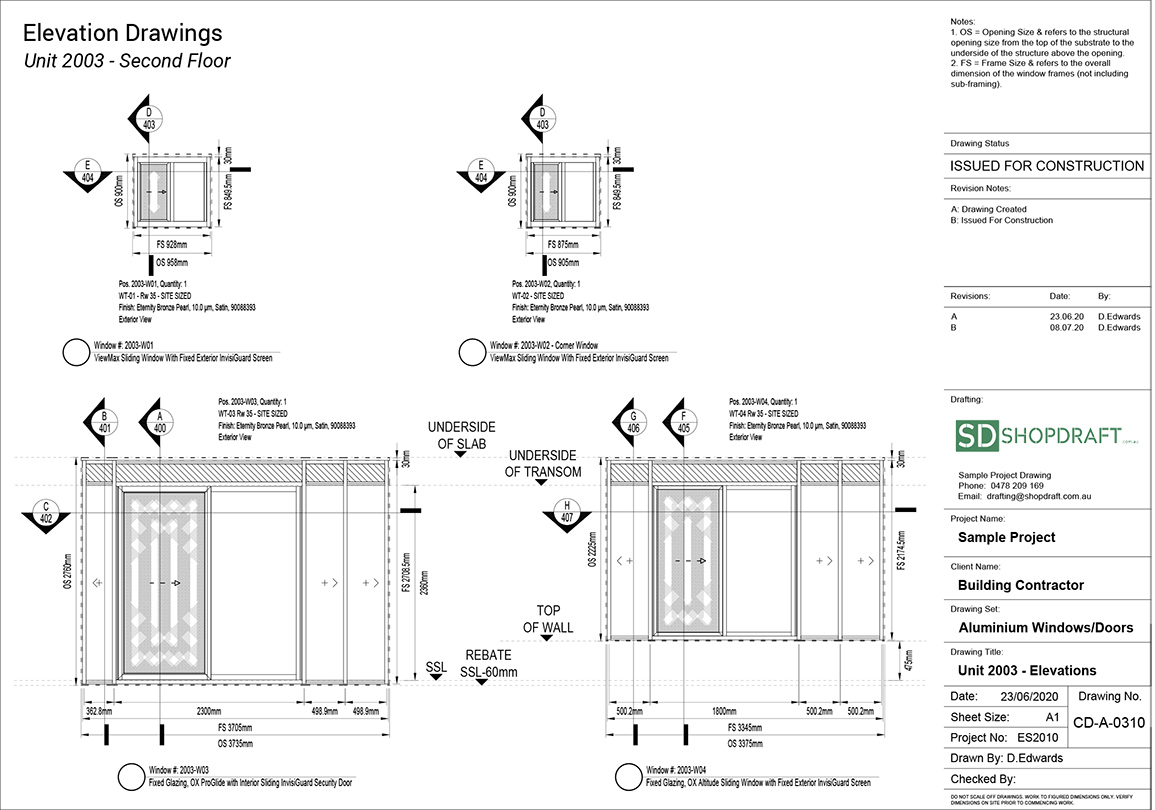

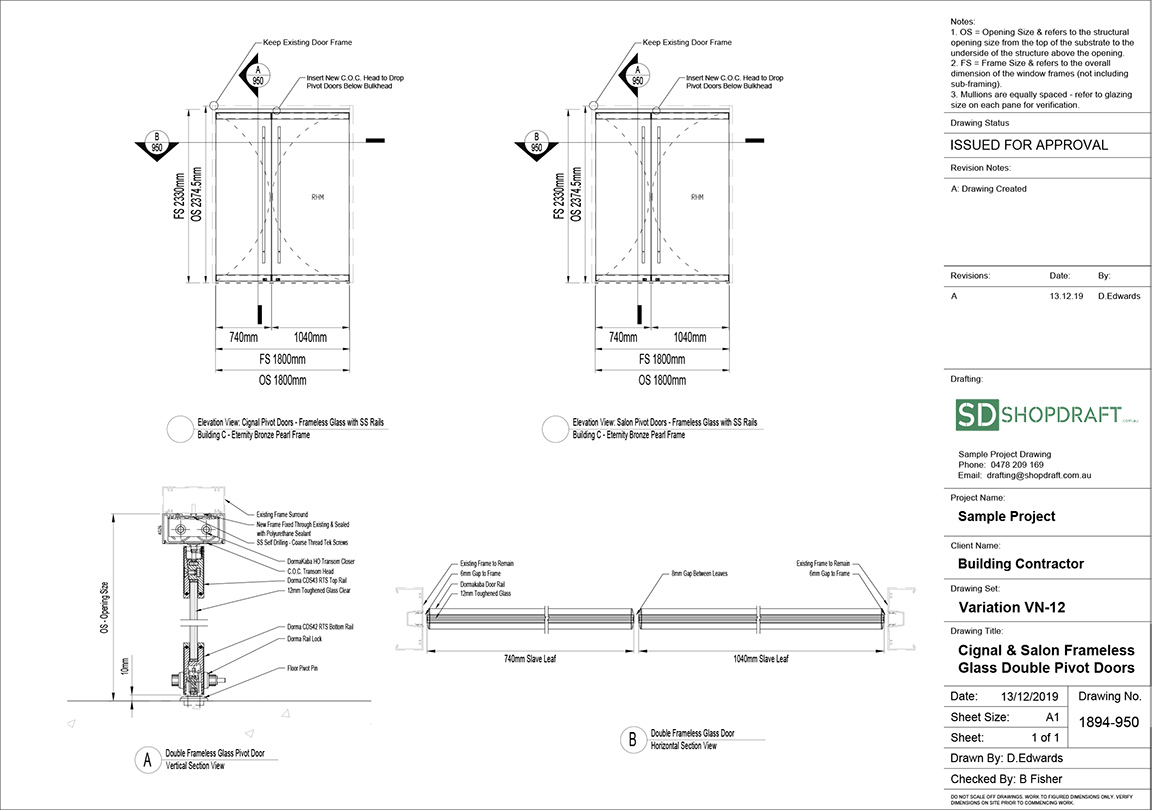

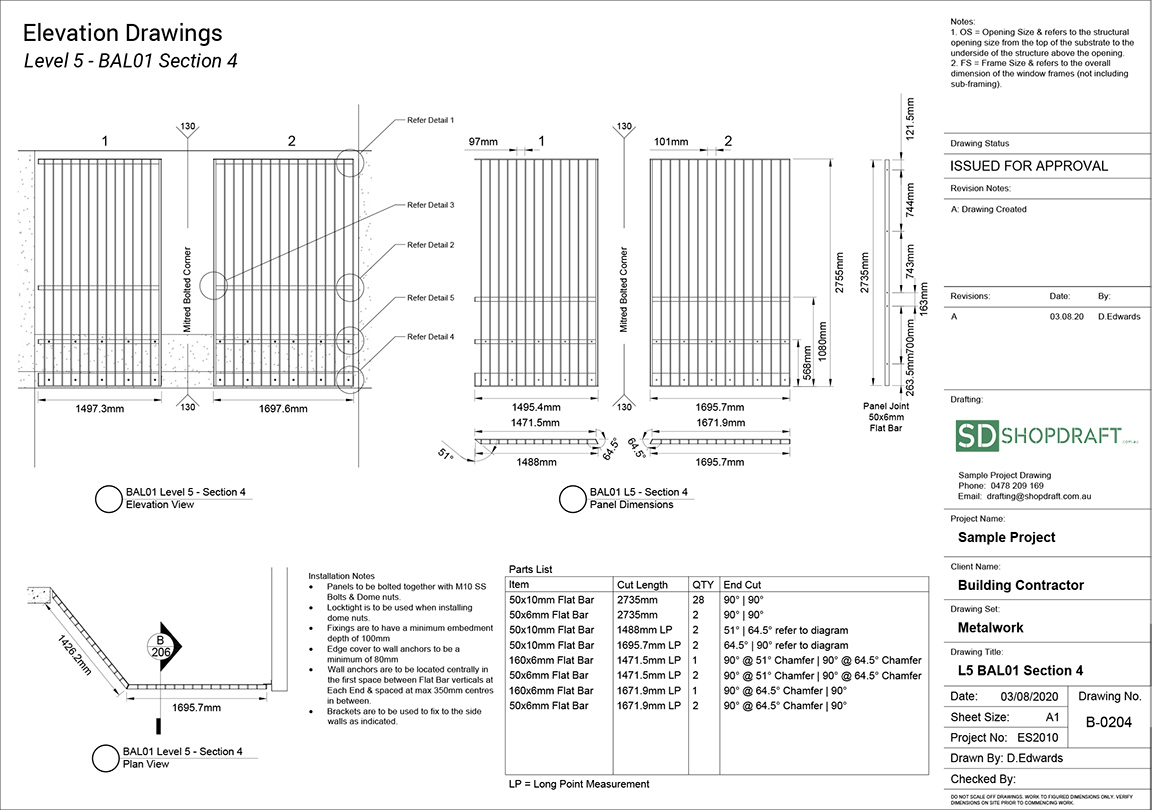

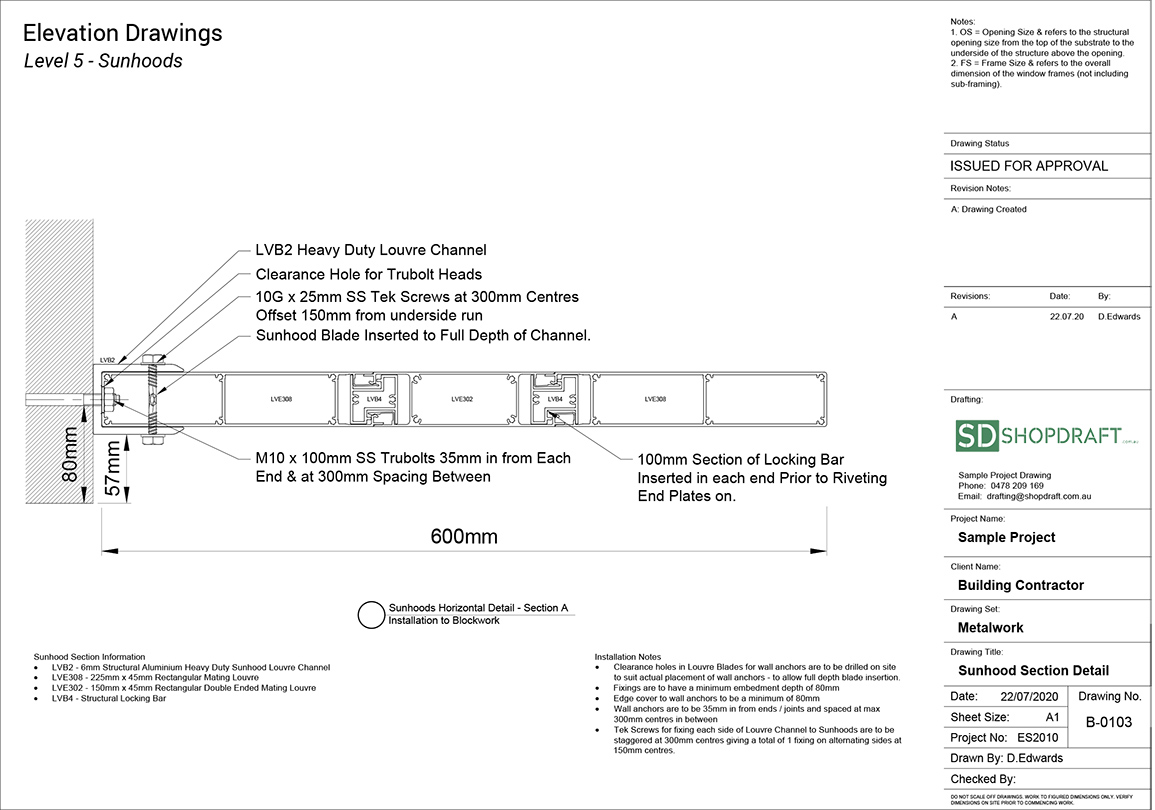

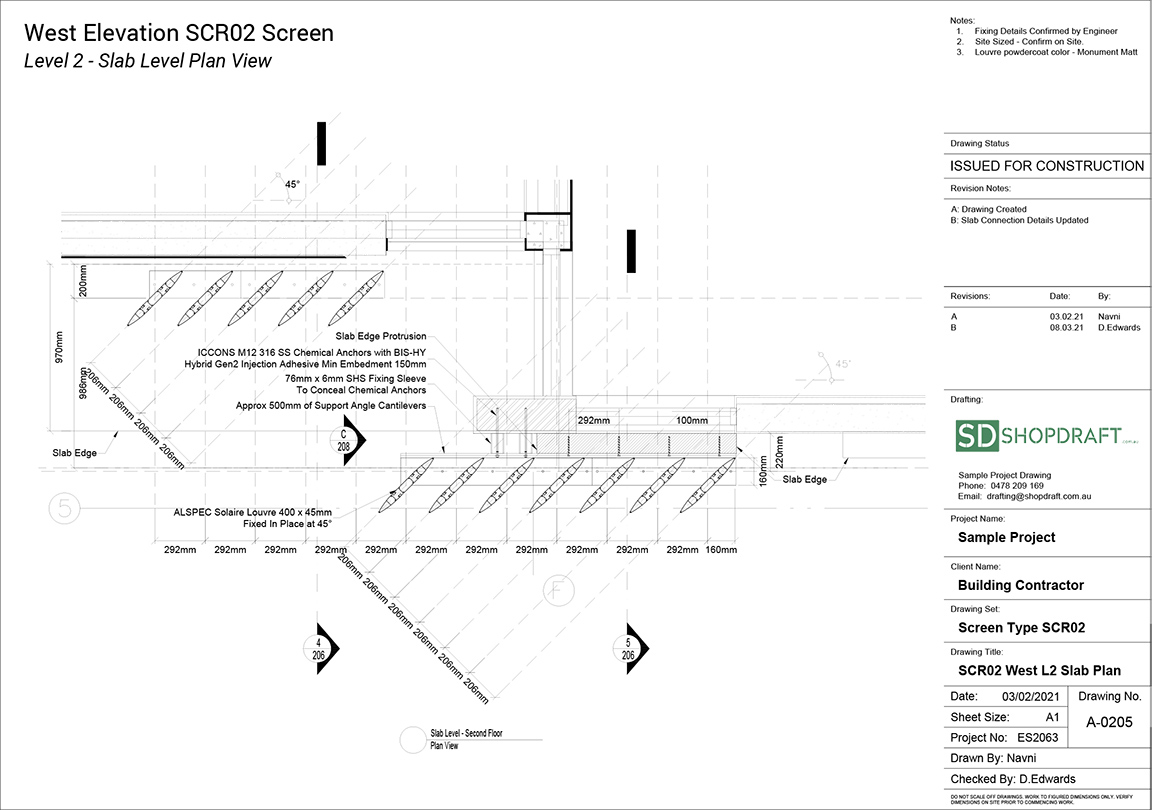

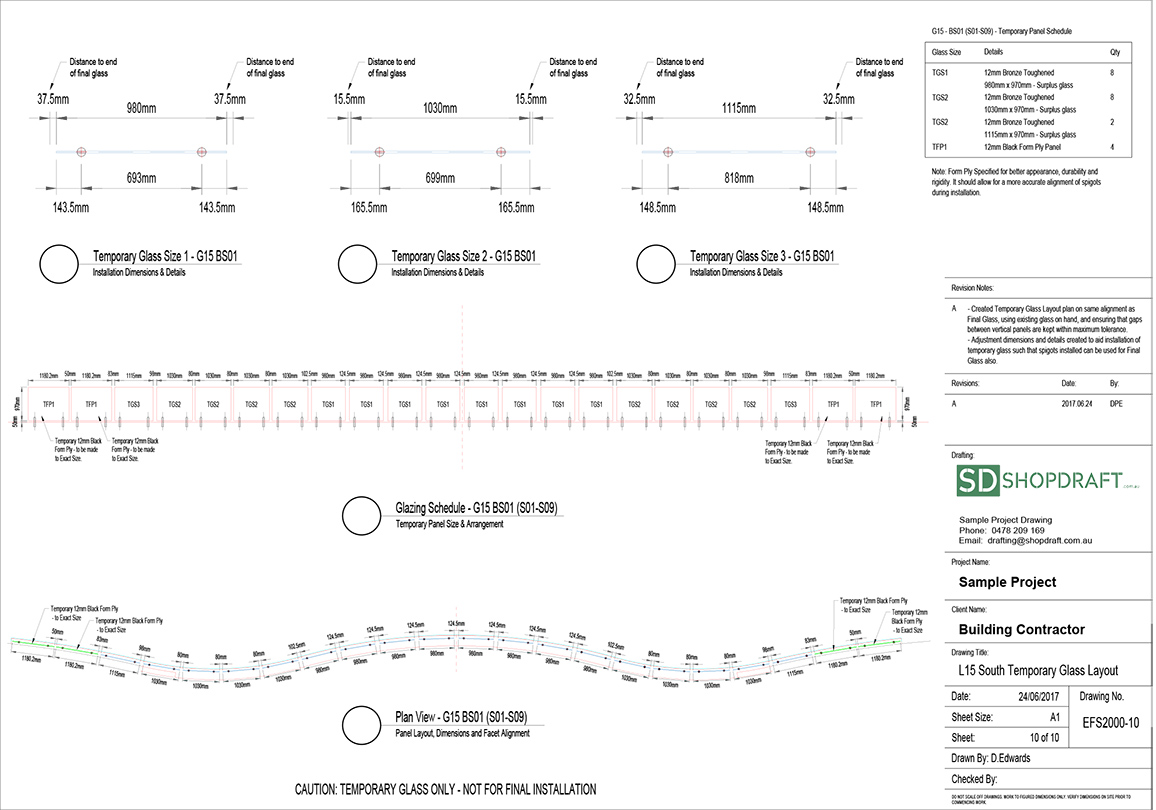

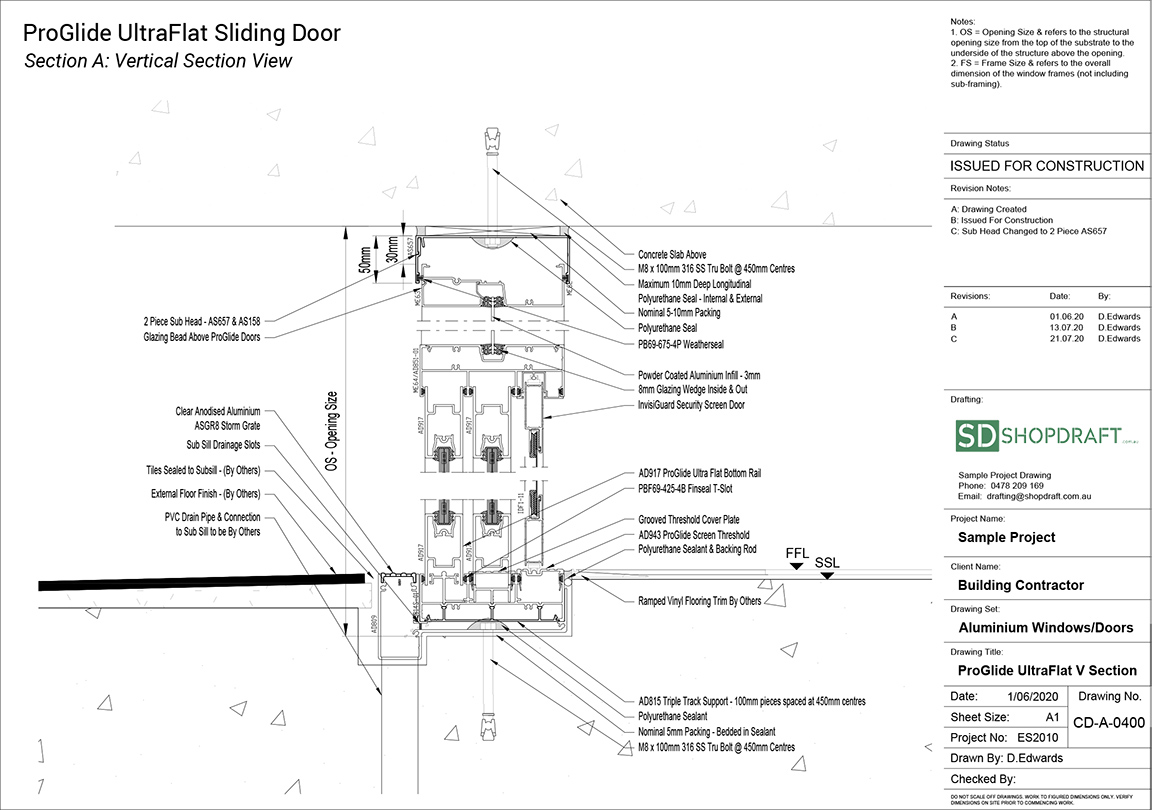

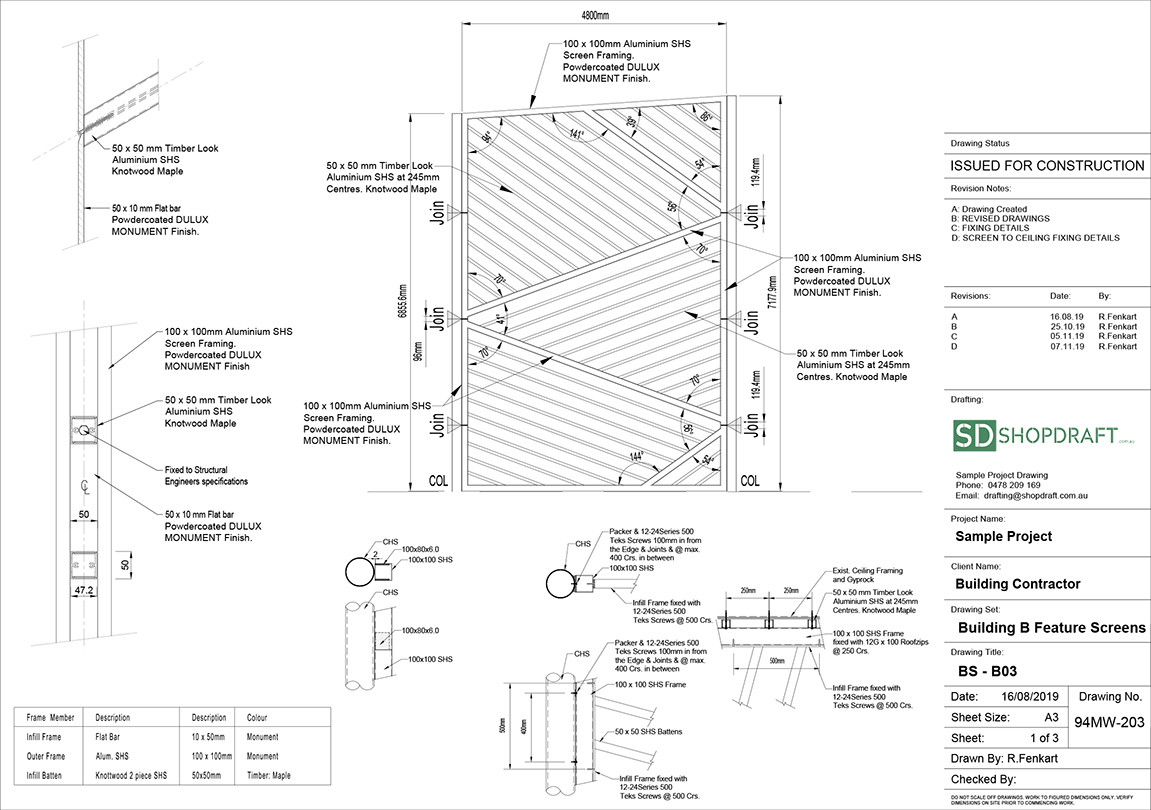

- Sample Shop Drawings
- Testimonials
Over the past 12 months, Damon has completed numerous Fabrication drawings for us, including custom designed components and DXF files for laser cutting. We have always been happy with the quality, accuracy and cost of the drawings Shop Draft have provided to us. They remain our go to for all our drafting requirements.
- Are you looking for a
Reliable Shop Drawing Solution?
Shop Draft can Help! We make Providing High Quality Shop Drawings to Your Clients Simple & Cost Effective.
- Contact Us
Call or Email Us to Discuss Your Needs
Call Us
Phone 0478 209 169Service Area
Focussing on the Gold Coast & Greater Brisbane Areas
